Grating Couplers (GC)

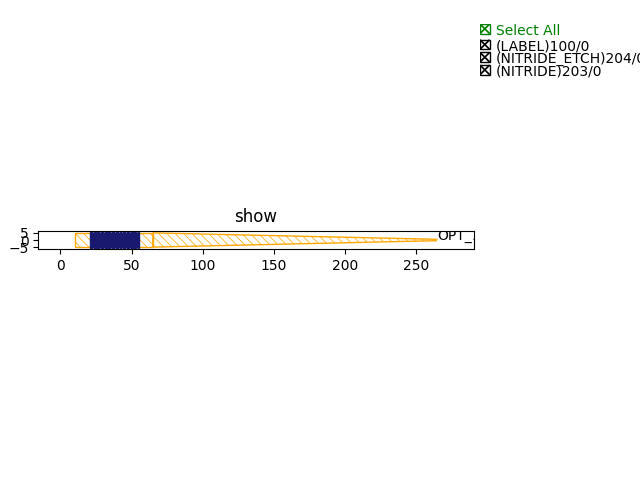

SiN300nm_1310nm_TE_STRIP_Grating
ports
waveguide type
orientation
OPT_1
TECH.WG.SIN_STRIP.O.WIRE
0

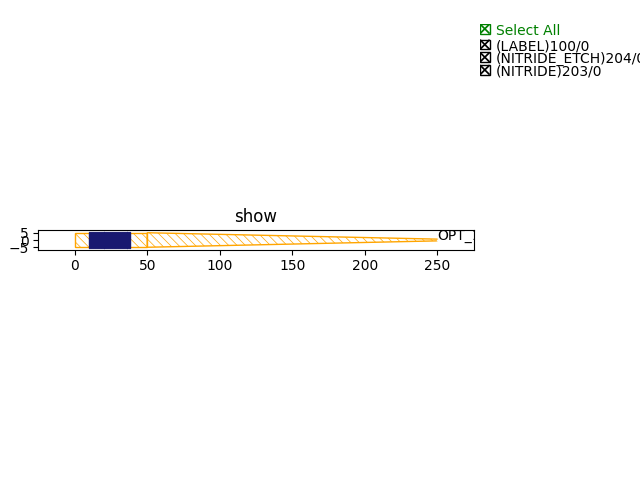

SiN300nm_1550nm_TE_STRIP_Grating
ports
waveguide type
orientation
OPT_1
TECH.WG.SIN_STRIP.C.WIRE
0
