MultiMode Interferometers (MMI)

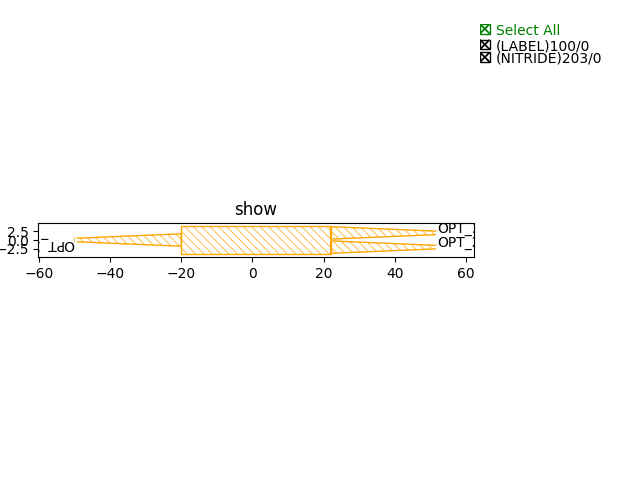

SiN300nm_1310nm_TE_STRIP_2x1_MMI

../_images/SiN300nm_1310nm_TE_STRIP_2x1_MMI.png

ports	waveguide type	orientation
OPT1	TECH.WG.SIN_STRIP.O.WIRE	180
OPT2	TECH.WG.SIN_STRIP.O.WIRE	0
OPT3	TECH.WG.SIN_STRIP.O.WIRE	0

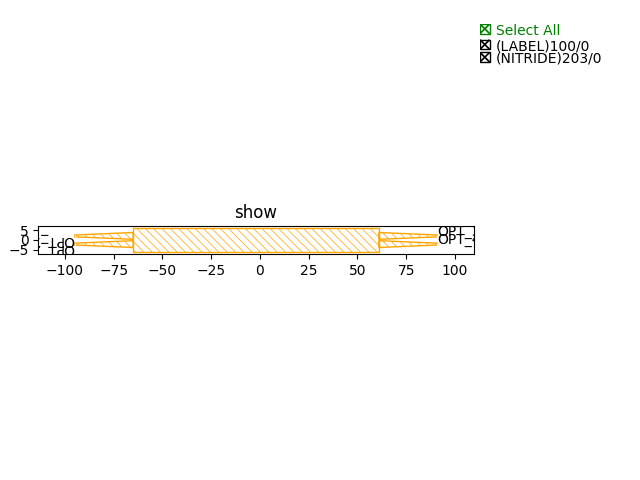

SiN300nm_1310nm_TE_STRIP_2x2_MMI

../_images/SiN300nm_1310nm_TE_STRIP_2x2_MMI.png

ports	waveguide type	orientation
OPT_1	TECH.WG.SIN_STRIP.O.WIRE	180
OPT_2	TECH.WG.SIN_STRIP.O.WIRE	180
OPT_3	TECH.WG.SIN_STRIP.O.WIRE	0
OPT_4	TECH.WG.SIN_STRIP.O.WIRE	0

SiN300nm_1550nm_TE_STRIP_2x1_MMI

../_images/SiN300nm_1550nm_TE_STRIP_2x1_MMI.png

ports	waveguide type	orientation
OPT_1	TECH.WG.SIN_STRIP.C.WIRE	180
OPT_2	TECH.WG.SIN_STRIP.C.WIRE	0
OPT_3	TECH.WG.SIN_STRIP.C.WIRE	0

SiN300nm_1550nm_TE_STRIP_2x2_MMI

../_images/SiN300nm_1550nm_TE_STRIP_2x2_MMI.png

ports	waveguide type	orientation
OPT_1	TECH.WG.SIN_STRIP.C.WIRE	180
OPT_2	TECH.WG.SIN_STRIP.C.WIRE	180
OPT_3	TECH.WG.SIN_STRIP.C.WIRE	0
OPT_4	TECH.WG.SIN_STRIP.C.WIRE	0
